6313-RS1

Share "6313-RS1"

    Description

    Deep groove ball bearings, single row

    Dimensions

    d 65 mm
    D 140 mm
    B 33 mm
    d1 ≈ 88.35 mm
    D2 ≈ 121.3 mm
    r1,2 min. 2.1 mm

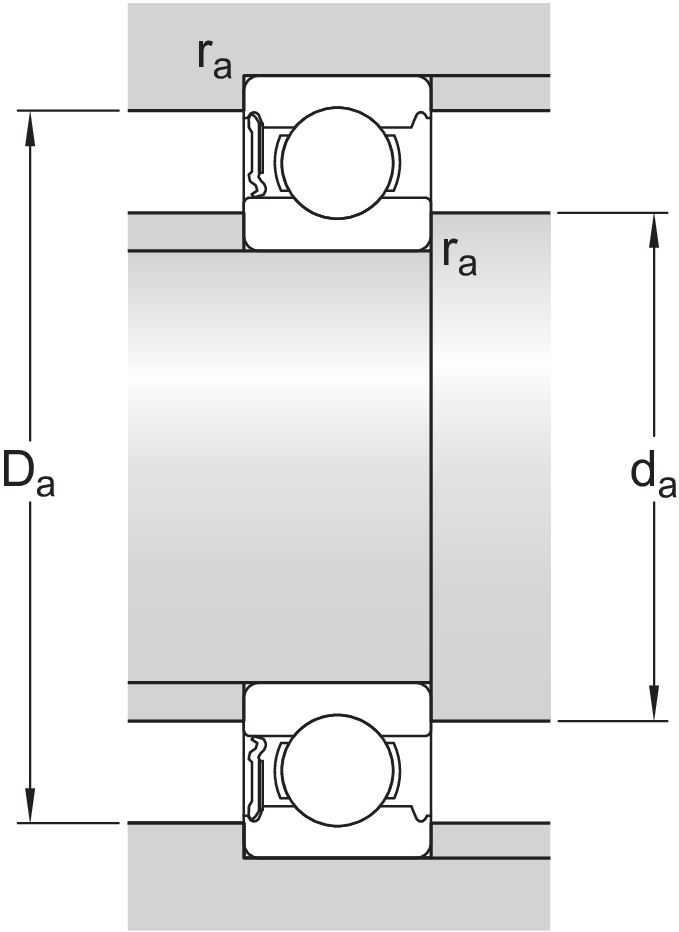

    Abutment dimensions

    da min. 77 mm
    da max. 88.3 mm
    Da max. 128 mm
    ra max. 2 mm
    Calculation data

    Basic dynamic load rating C 97.5 kN
    Basic static load rating C0 60 kN
    Fatigue load limit Pu 2.5 kN
    Limiting speed 3200 r/min
    Calculation factor kr 0.03
    Calculation factor f0 13.2
    Mass

    Mass bearing 2.12 kg
