Description
Pulleys
Wedge Taper Bushed 2 Groove SPZ
Wedge Taper Bushed 2 Groove SPZ
PHP 2SPZ180TB

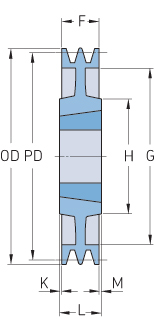

| Pitch diameter (mm) | 180 |
| Outside diameter (mm) | 184 |
| Pulley type | 8 |
| Bushing no. | 2012 |
| Min. bore (mm) | 14 |
| Max. bore (mm) | 50 |
| F (mm) | 28 |
| G (mm) | 152 |
| K (mm) | – |
| L (mm) | 32 |
| M (mm) | 4 |
| H (mm) | 100 |
| Weight (kg) | 2.9 |
